S function name: 3 terminal positive voltage regulator

S profile

NJM78L00 series is 3 terminal voltage regulators, adopts New JRC planar epitaxial process production. The series voltage regulator has the internal current limiting and overheating protection function, make almost no damage. If you provide the appropriate heat dissipation, they can provide the output current of 100 ma. They are mainly used as widely used in the fixed voltage regulator, including local or onboard adjustment, in order to eliminate single points of regulating the noise and interference problems. In addition, they can be used together with the power supply through the element to produce high current stabilizer. NJM78L00 series used as a replacement of zener diode/resistor combination, generally can provide effective output impedance of two orders of magnitude, at the same time to provide more low static current and less noise.

S characteristics

Low internal short circuit current limiting circuit

Low built-in overheat protection circuit

High low ripple suppression

Large output current is low (100 ma)

Low bipolar technology

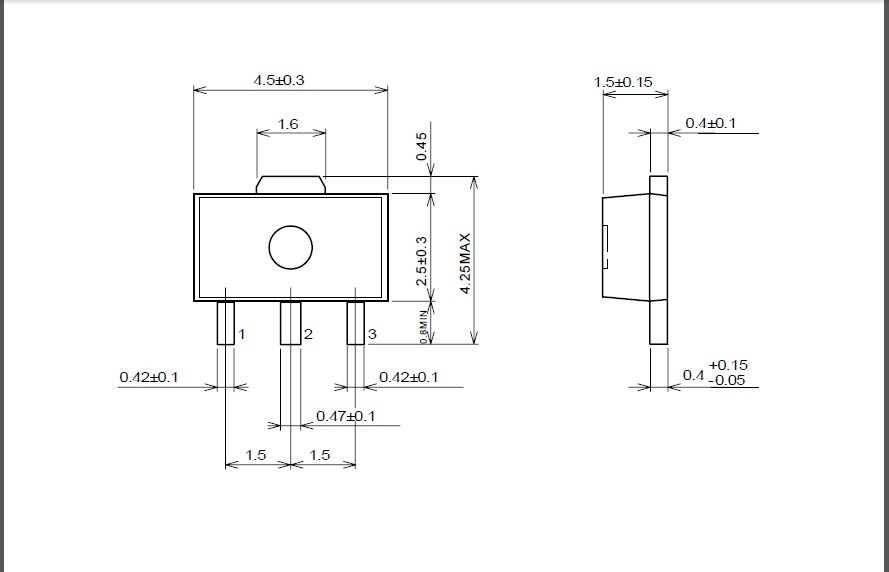

Low encapsulation (SOT - 89, 150 mil SOP8 JEDEC)
