  • 產品名稱：

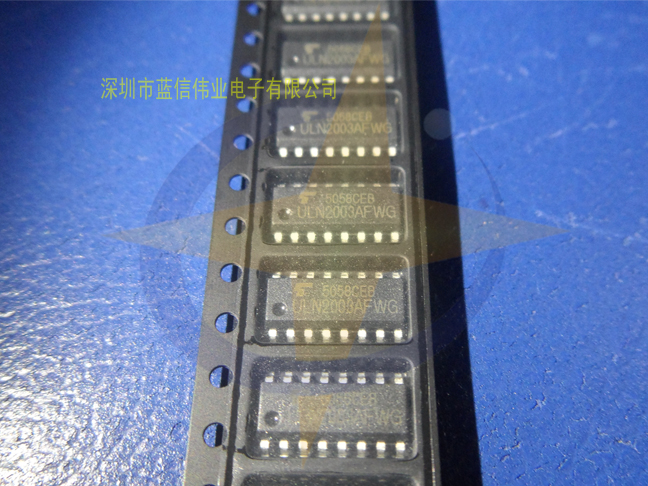

    ULN2003AFWG 達林頓驅動程序
  • 功能名稱：
    達林頓驅動程序
  • 概要：

    產品規格

    封裝類型

    Toshiba Package Name SOL16
    Pins 16

    Absolute Maximum Ratings

    Characteristics Symbol Rating Unit
    Output Current (Max) IOUT 500 mA
    Operational Temperature Topr -40 to 85 degC
    Storage Temperature (max) Tstg 150 degC
    Storage Temperature (min) Tstg -55 degC
    Output Breakdown Voltage VCE(SUS) 50 V

    產品特性

    項目 符號 條件 數值 單位
    DC Current Gain hFE (Min) hFE - 1000 -
    VIN(ON) (Max) VIN(ON) - 24 V
    VIN(ON) (Min) VIN(ON) - 2.8 V
    Recommended System Supply Voltage (Max) VIN(recommended) - 24 V
    Recommended System Supply Voltage (Min) VIN(recommended) - 0 V
  • 技術資料下載：
